BVP series Piston Type Pneumatic Hammer

Short Description : Product Featues: Vibration intensity can be adjuster based on air pressure,can immediately start,stop,fast,low-noise,vibration force,security. Application: Feed material conveyor,vibrating sereening,vibrating hopper,to helpfill packaging,foundry sand mol

Dimensions : Array

FOB Price : negotiation

Min.Order Quantity : 10

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Product Featues:

Vibration intensity can be adjuster based on air pressure,can immediately start,stop,fast,low-noise,vibration force,security.

Application:

Feed material conveyor,vibrating sereening,vibrating hopper,to helpfill packaging,foundry sand mold bibration.

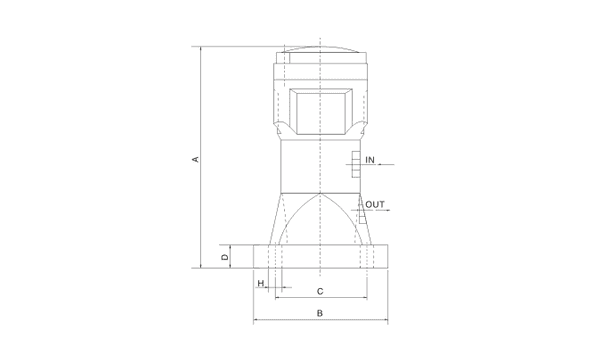

Dimensions:

BVP series Piston Type Pneumatic Hammer

Technical praameters:

Type	Requency(V.P.M)			Vibration power(N)			耗气量	weight	A	B	C	D	H	IN	OUT
Type	2Mpa	4Mpa	6Mpa	2Mpa	4Mpa	6Mpa	L/min	KG	A	B	C	D	H	IN	OUT
BVP-30C	1760	2300	2850	195	380	560	230	0.9	128	90	68	18	12	1/4″	1/4″
BVP-40C	1330	1670	1870	270	530	720	250	1.9	160	100	78	18	12	1/4″	1/4″
BVP-60C	1000	1220	1350	400	760	1000	270	4.5	208	140	105	20	16	1/4″	1/4″
