2V025 Solenoid Valve

Ordering Code : 2V025-06 2V025-08

Working Medium : Air,Water,Oil

Motion Pattern : Direct Drive Type

Type : Normal Close Type

Aperture of Flow Rate : 2.5 mm

CV Value : 0.23

Port Size : 1/8″ 1/4″

Operation Fluid Viscosity : 20 CST(below)

Working-pressure : Air,Water,Oil:0.05~0.7MPa

Max. Pressure Resistance : 1.6MPa

Operating Temperature Range : -10~80℃

Voltage Range : ±10%

Protect Class : IP65

Power Consumption : AC:6.5VA DC:6.5W

Insulation : F(class)

Material : N/A

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

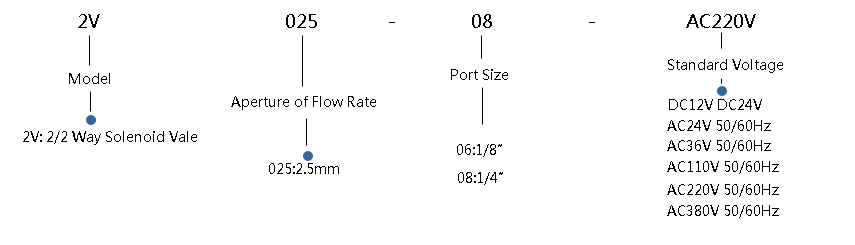

Ordering Code
2V025 Solenoid Valve

Specification

Model	2V025-06	2V025-08
Working Medium	Air,Water,Oil
Motion Pattern	Direct Drive Type
Type	Normal Close Type
Aperture of Flow Rate	2.5 mm
CV Value	0.23
Port Size	1/8″	1/4″
Operation Fluid Viscosity	20 CST(below)
Working-pressure	Air,Water,Oil:0.05~0.7MPa
Max. Pressure Resistance	1.6MPa
Operating Temperature Range	-10~80℃
Voltage Range	±10%
Protect Class	IP65
Power Consumption	AC:6.5VA DC:6.5W
Insulation	F(class)
Material of Body	Aluminum or Brass
Material of Oil Seal	NBR(or) VITON
Shortest Excitation Time	0.05 second

Overall Dimension

Previous: Wholesale price stable quality Cylinder for Seychelles Manufacturers

Next: 4V300 Solenoid Valve

High Pressure Solenoid Valve

Solenoid Valve

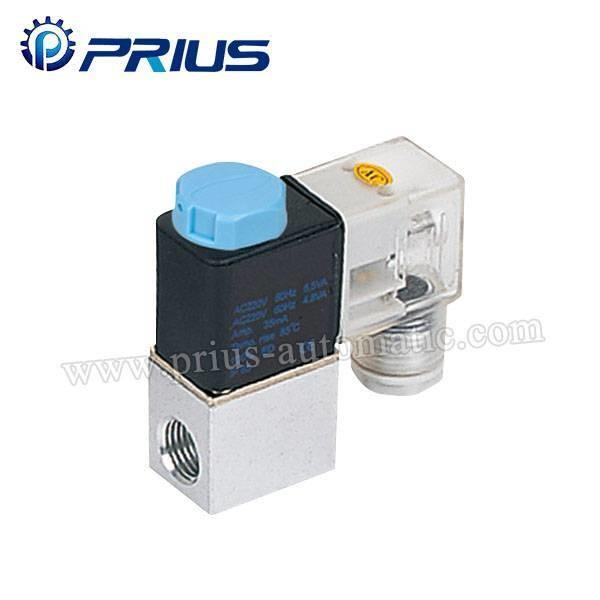

2V025 Solenoid Valve Images
