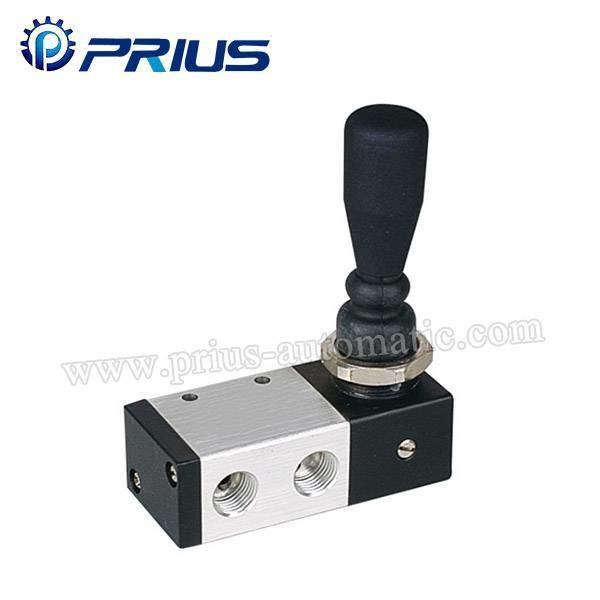

TSV Hand Valve

Short Description : Array,40 Micron Filtered Air,Direct Drive Type,18mm2 (CV=1.00),G1/4",0~0.8MPa,0~06℃

Product Details : negotiation,10PCS,10000 Piece/Pieces per Month,NingBo Or ShangHai,T/T, L/C, PAYPAL

Contact Now

Product Detail

Product Tags

TSV

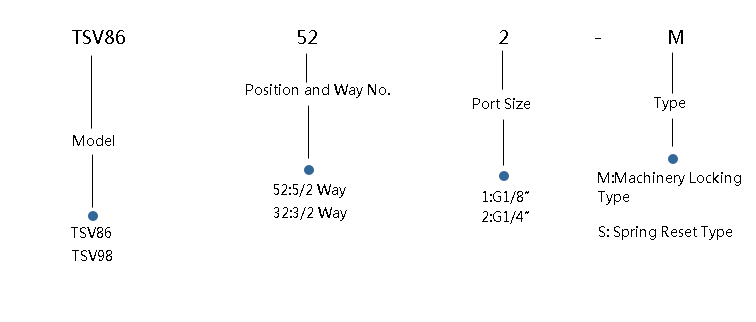

Ordering Code

Model	TSV86522 M S	TSV98322 M S
Working Medium	40 Micron Filtered Air
Motion Pattern	Direct Drive Type
Effective Sectional Area	18mm2(CV=1.00)
Port Size	G1/4″
Working Pressure	0~0.8MPa
Operating Temp.	0~06℃

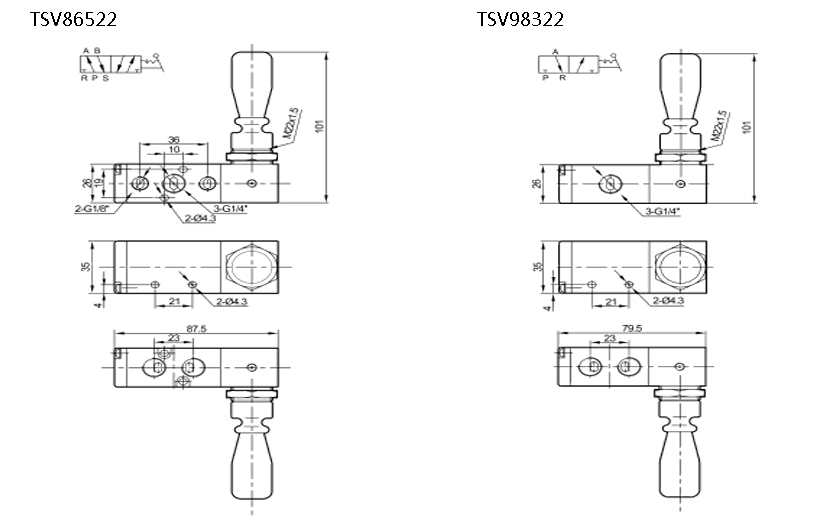

Overall Dimension
TSV Hand Valve

Previous: 4V100 Electromagnetic Valve

Next: Metal Coupler SH

TSV Hand Valve Images
