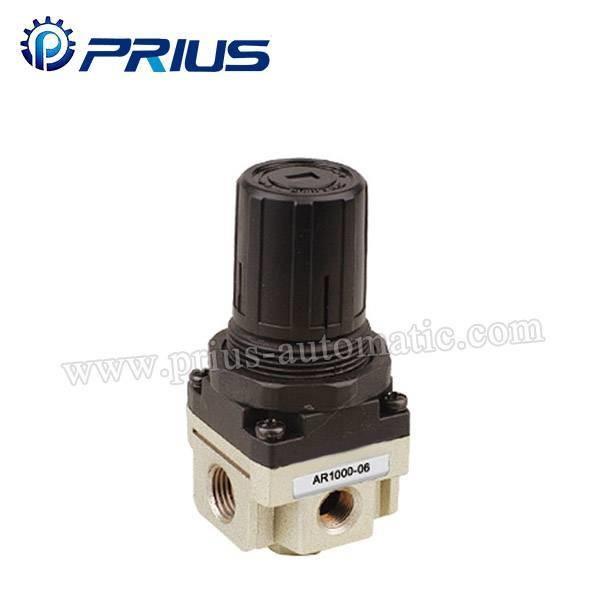

AR1000-5000 regulator

Model : AR1000-M5,AR2000-01,AR2000-02,AR2500-02,AR2500-03,AR3000-02,AR3000-03,AR4000-03,AR4000-04,AR4000-06,AR5000-06,AR5000-10

Rated Flow : 100,550,550,2000,2000,2500,2500,6000,6000,6000,8000,8000

Port Size : M5,G1/8",G1/4",G1/4",G3/8",G1/4",G3/8",G3/8",G1/2",G3/4",G3/4",G1"

Highest Working Pressure : 1.0MPa

Ensured Pressure Resistance : 1.5MPa

Operating Temp. Range : 5~60℃

Range of Adjustable Pressure : 0.05~0.7MPa,0.05~0.85MPa

Valve Type : With Overflow

Contact Now

Product Detail

Product Tags

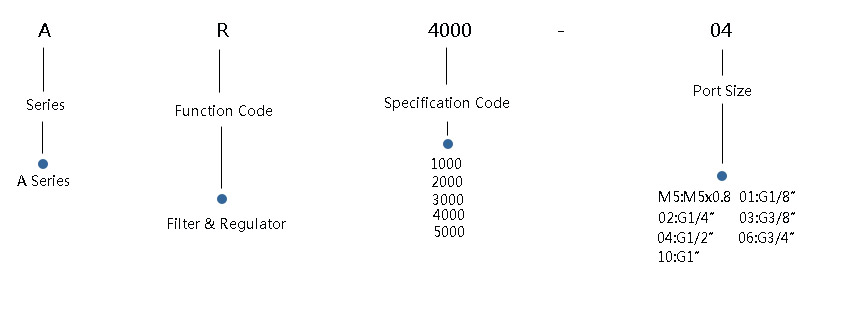

Ordering Code

AR1000-5000 regulator

Specification

Model

AR1000-M5

AR2000-01

AR2000-02

AR2500-02

AR2500-03

AR3000-02

AR3000-03

AR4000-03

AR4000-04

AR4000-06

AR5000-06

AR5000-10

Rated Flow

100

550

2000

2500

6000

8000

Port Size

G1/8″

G1/4″

G3/8″

G1/4″

G3/8″

G1/2″

G3/4″

G1″

Highest Working Pressure

1.0MPa

Ensured Pressure Resistance

1.5MPa

Poerating Temp.Range

5~60℃

Range of Adujstable Pressure

0.05~0.7MPa

0.05~0.85MPa

Valve Type

With Overflow

Dimension Sheet

Model	Bore	A	B	C	D	E
AR1000	M5	61.5	11	25	25	28
AR2000	G1/8″~G1/4″	95	17	40	40	34
AR2500	G1/4″~G3/8″	102.5	25	48	53	34
AR3000	G1/4″~G3/8″	127.5	35	53	53	40
AR4000	G3/8″~G1/2″	149.5	37.5	70	70	54
AR4000-06	G3/4″	154	40.5	70	75	54
AR5000	G3/4″~G1″	168	48	90	90	54
