AL1000-5000 lubricator

Short Description : Array,Array,Array,1.0MPa,1.5MPa,5~60℃,ISO VG 32,Polycarbonate,Array

FOB Price : negotiation

Min.Order Quantity : 10

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Ordering Code

AL1000-5000 lubricator

Specification

Model	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10
Rated Flow	95	800	800	1700	1700	5000	5000	5000	7000	7000
Port Size	M5	G1/8″	G1/4″	G1/4″	G3/8″	G3/8″	G1/2″	G3/4″	G3/4″	G1″
Highest Working Pressure	1.0MPa
Ensured Pressure Resistance	1.5MPa
Poerating Temp.Range	5~60℃
Recommended Oil Use	ISO VG 32
Container Material	Polycarbonate
Protective Cover	Not Available			Available

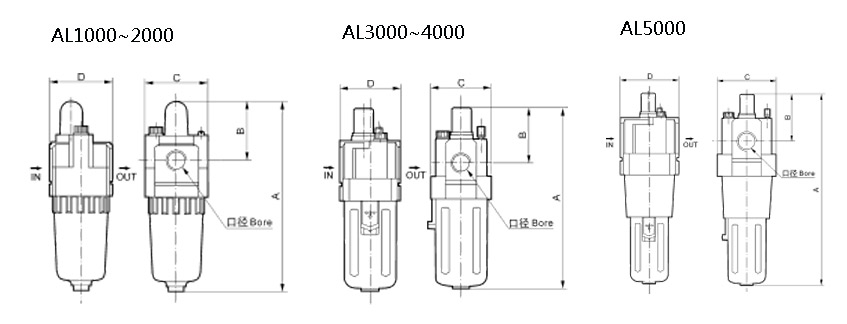

Overall Dimension

Model	Bore	A	B	C	D
AL1000	M5	81.5	25.5	25	-
AL2000	G1/8″~G1/4″	122	38	40	40
AL3000	G1/4″~G3/8″	142	38	53	53
AL4000	G3/8″~G1/2″	177	41	70	70
AL4000-06	G3/4″	177	39	70	70
AL5000	G3/4″~G1″	254	45	90	90

Previous: 4V100 Electromagnetic Valve

Next: Metal Coupler SH

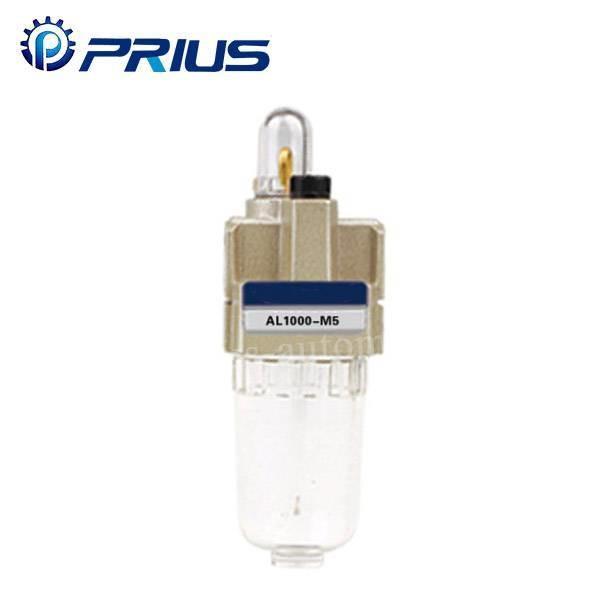

AL1000-5000 lubricator Images
