XOL lubricator

Ordering Code Specification Size : MINI,MIDI,MAXI,XOL-1/8-MINI,XOL-1/4-MINI,XOL-3/8-MINI,XOL-3/8-MIDI,XOL-1/2-MIDI,XOL-3/4-MIDI,XOL-3/4-MAXI,XOL-1-MAXI

Medium : Compressed Air

Features of Structure : Sintered filter with water separator

Mounting Type : Pipe mounting,foot mounting

Assembly Position : Vertical ±5o

Connection : G1/8",G1/4",G3/8",G1/2",G3/4",G1"

Standard Nominal Flow Rate : 1300,2300,2700,5500,6100,6300,8400,9000

Max.Working Pressure : 16

FOB Price : negotiation

Min.Order Quantity : 10

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

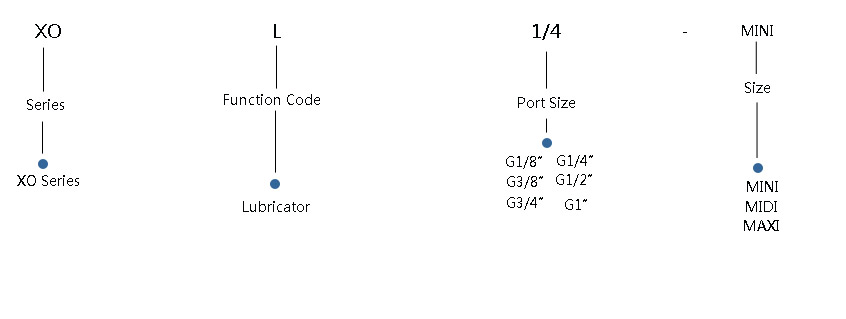

Ordering Code

XOL lubricator

Specification

Size	MINI			MIDI			MAXI
	XOL-1/8-MINI	XOL-1/4-MINI	XOL-3/8-MINI	XOL-3/8-MIDI	XOL-1/2-MIDI	XOL-3/4-MIDI	XOL-3/4-MAXI	XOL-1-MAXI
Medium	Compressed Air
Features of Structure	Sintered filter with water separator
Mounting Type	Pipe mounting or foot mounting
Assembly Position	Vertical ±5o
Connection	G1/8″	G1/4″	G3/8″	G3/8″	G1/2″	G3/4″	G3/4″	G1″
Standard Nominal Flow Rate	1300	2300	2700	5500	6100	6300	8400	9000
Max.Working Pressure	16bar
Min.Standard Nominal Flow Rate	3L/min			6L/min			10L/min
Capacity of Condensate Fluid	22 ml
Temperature Range	0~60℃
Materials Information	Housing:Zinc die-casting; Oil bowl and Drip Cap:PC; Metal bowl guard:Aluminium alloy; Sealing:NBR;
Recommended Oil	ISO VG 32 or the same grade

Product Explain
The direct constant-density lubricator add regulator quantity oil to the compressed air. A valve maintains oil mist content pro – portional to the compressed oil flow.

The pressure drop that occurs when the air flow through a sight feed oil cup delivers oil from the bowl to the sight oil indicator. The drop of the oil flows into the air channel when it is atomized.

The oil drip rate is controlled by means of the regulating screw. Normally, 1 to 12 drops/1000L of the air is sufficient.

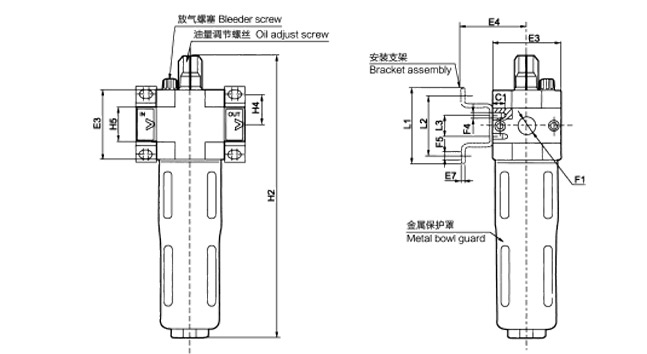

Overall Dimension

Dimension Sheet

Model E3 E4 E7 F1 F4 F5 Φ L1 L2 L3 H4 H5

XOL-…-MINI 40 39 76 95 M4 4.5 44 35 11 17.5 20

XOL-…-MIDI 55 47 93 112 M5 5.5 71 60 22 24.5 32

XOL-…-MAXI 66 53 104 124 M5 5.5 71 60 22 24.5 32,40
