XYC-03 Magnetic Switch

Model : XYC-03R,XYC-03N,XYC-03P

Characteristics : 2-Wire Type,3-Wire Type

Switching Logic : SPST

Output : Solid State Output,Reed Switch

Sensor Type : NPN Current Sinking,PNP Current Sourcing

Operating Voltage : 5-240V DC/AC, 5-30V DC

Max.Switching Current : 100mA max.,200mA max.

Contact Rating : 10W max.,6W max.

Current Consumption : 8mA @ 24V DC max.

Voltage Drop : 3.0V max.,1V @ 200mA max.

Leakage Current : 0.01mA

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo,ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Specifications

Model	XYC-03R	XYC-03N	XYC-03P
Characteristics	Connect Diagram
Characteristics
Wiring Method	2-Wire Type	3-Wire Type
Switching Logic	SPST Nomally Open	Solid State Output,Normally Open
Sensor Type	Reed Switch	NPN Current Sinking	PNP Current Sourcing
Operating Voltage	5~240V DC/AC	5~30V DC
Max.Switching Current	100mA max.	200mA max.
Contact Rating	10W max.	6W max.
Current Consumption	-	8mA @ 24V DC max.
Voltage Drop	3.0V max.	1V @ 200mA max.
Leakage Current	-	0.01mA max.
Indicator	LED/Red LED	Red LED	Green LED
Cable	Φ2.8, 2C, PVC	Φ2.8, 2C, PVC
Max.Operating Frequency	200HZ	1000HZ
Temperature Range		-10~70℃
Shock	30G	50G
Vibration	9G
Enclosure Classification	IEC 529 IP67(NEMA6)
Protection Circuit	-	With Protection

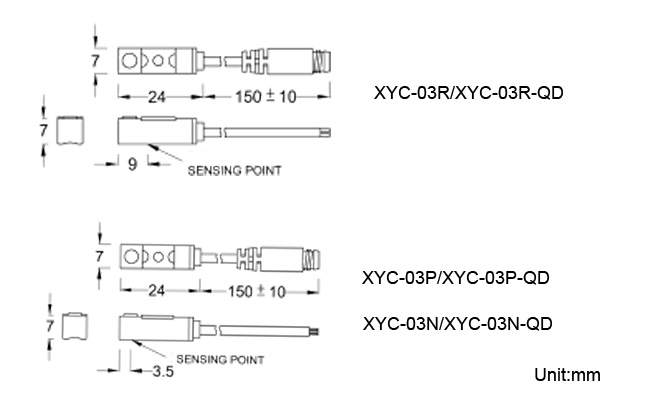

Overall Dimension

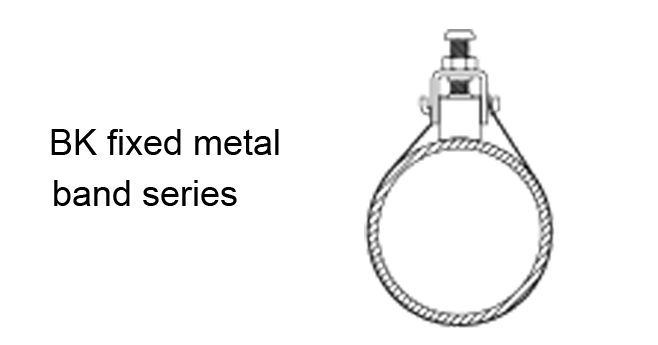

Mounting Clamp

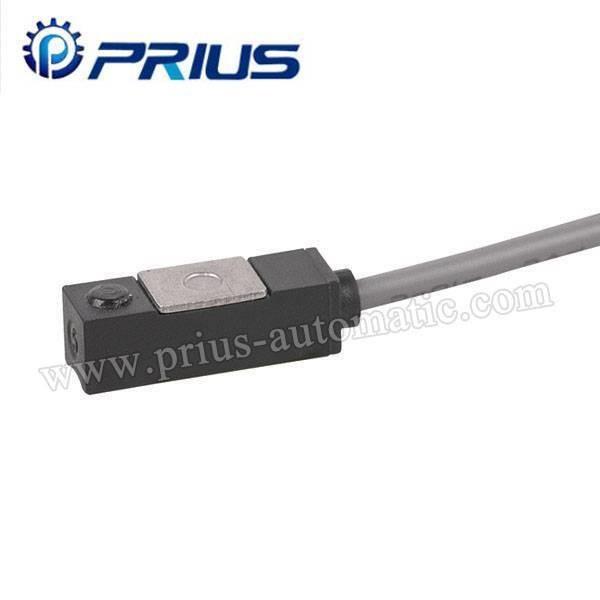

XYC-03 Magnetic Switch

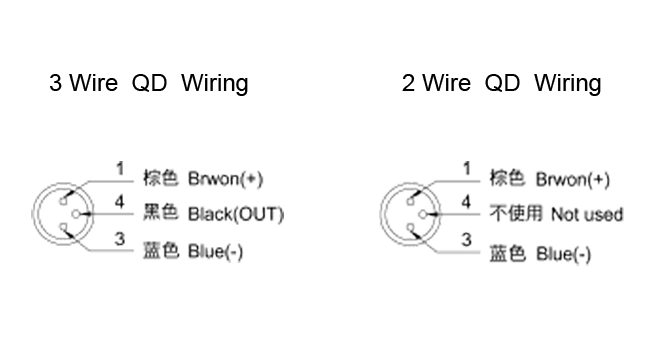

M8 Pin out

XYC-03 Magnetic Switch
