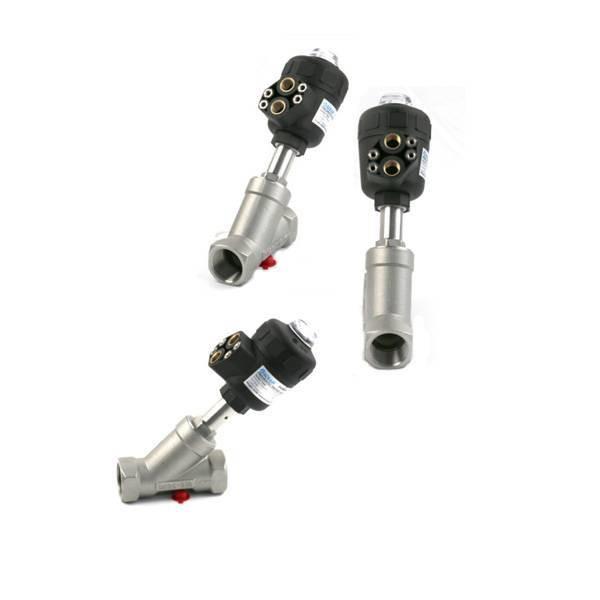

SeriesPV800 (Namur type Actuator)

Series : PV800

Actuator Type : Namur type

Valve Type : 2/2-way Angle-Seat Valve

Temperature Range : +180°C

Actuator Options : NC and NO universal actuators

Flow Rate : High

Life Cycle : Long

Port Size : DN 15-65

Flow Direction : Below or above seat

Control Function : Simple conversion

Accessories : Modular universal accessory program

Actuator Size : Standard

Interface : Namur

Installation : Easy

Compatible with : Control heads

Contact Now

Product Detail

Product Tags

SeriesPV800 (Namur type Actuator)
2/2-way Angle-Seat Valve for medium up to +180°C,Namur type Actuator connection is available on customer request DN 15-65

? High flow rate
? Long life cycle
? NC and NO universal actuators with modular
universal accessory program up to control heads
? Deliverable with flow direction below or above seat
? Simple conversion of the control function

Actuator Size

Port Size	Standard Actuator Size mm		NAMUR type Actuator Namur interface allows easy installation of pilot valve to actuator Increased operational reliablity when using the NAMUR piolt valves Type 4M310-08/10
Port Size	PA
DN15	40,50	Available
DN20	50,63,80	Available
DN25	50,63,80	Available
DN32	63,80
DN40	63,80
DN50	63,80
DN65	80,125

Series PV200P025B3S
2/2-way Angle-Seat Valve for medlum up to +180℃,male threaded port connectlon,DN 15-65
? High flow rate
? Long life cycle
? NC and NO universal actuators with modular
universal accessory program up to control heads
? Deliverable with flow direction below or above seat
? Simple conversion of the control function

SeriesPV800 (Namur type Actuator)

Actuator Size

Port Size	Standard Actuator Size mm			PV100 Series Plunger Pilot angle seat valve is propelled by piston actuator,either single acting or double acting. Actuators are made of three different materials,applicable to different working temperature: 2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective ssealing Maintenence free,compatibale with various accessories, direction indicating ,stroke limiting or manual switching can be achieved conveniently.
Port Size	PA	S.S.	AL
DN10	40,50	40,50	40,50
DN15	40,50	40,50	40,50
DN20	50,63,80	50,63,90	50,63,80
DN25	50,63,80	50,63,90	50,63,80
DN32	63,80	63,90	63,80
DN40	63,80	63,90	63,80
DN50	63,80	63,90	63,80
DN65	80,100	90,125	80,100
DN80	100	125	100
DN100	125	125	125
