cylinder kits DNC

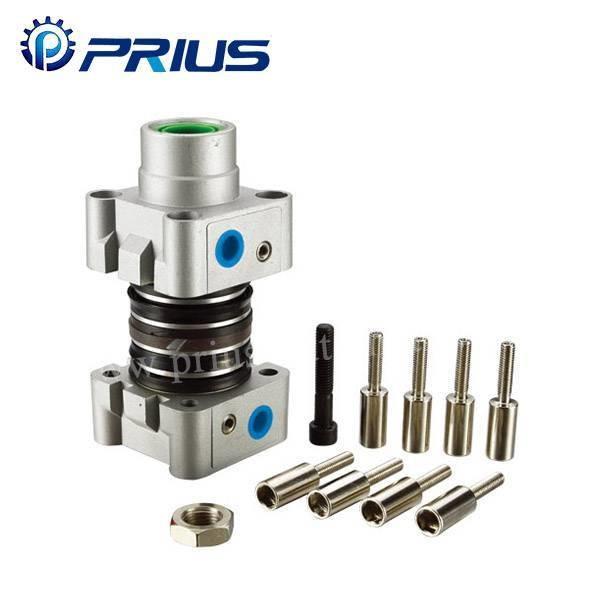

Name : DNC Cylinder Kit

Material : Aluminum

MOQ : 10PCS

Speed Range : 50~800mm/s

Bore : 32mm~320mm

Port Size : M5X0.8/G1/8″

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Name:	DNC Cylinder Kit	Material:	Aluminum
MOQ:	10PCS	Speed Range:	50~800mm/s
Bore:	32mm~320mm	Port Size:	M5X0.8/G1/8″

ISO15552 DNC Pneumatic Air Cylinders Assembly Kits Festo Type Spray Paint Cover

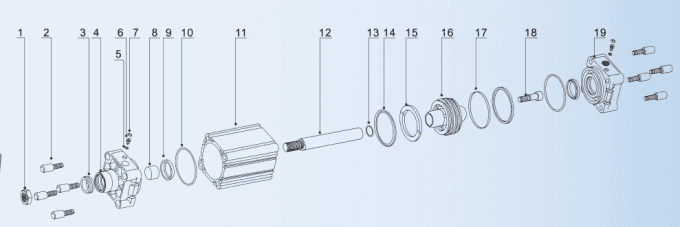

Specification

NO.	Designation	Material	NO.	Designation	Material

1	Nut	Carbon Steel	11	Barrel(Without)	Hard anodized aluminum

2	Profile Bolt	Carbon Steel	12	Piston Rod(Without)	S45C Hard chrome carbon steel

3	Front Cover Seal	PUR	13	Rod O-ring	NBR

4	Front Cover	Aluminum Alloy	14	Piston Seal	NBR

5	O-ring	NBR	15	Magnet (Optional)	RbFeb

6	Adjustable Screw		16	Piston	Aluminum Alloy

7	Block Slip		17	Wear Ring	PA66

8	Self Lubricating bearing	PTFE+Brass	18	Hex Socket Screw	Carbon Steel

9	Cushion Seal	NBR	19	Back Over	Aluminum Alloy

10	Cover O-ring	NBR
